| Panel |
| Screen Size |
49" |
55" |
| Usage (Hour/Day) |
24/7 |
| Active Area (Horizontal × Vertical)(mm) |
1073.8 x 604mm |
1209.6 x 680.4mm |
| Resolution (Pixel) |
FHD 1920 x 1080 |
|
| Brightness (Typical) |
450 nits |
500 nits |
| Contrast Ratio (Typical) |
1300:1 |
1400:1 |
| Dynamic Contrast Ratio |
500,000:1 |
| Viewing Angle (Horizontal / Vertical) |
178° |
| Light Life (Typical) |
50,000hrs |
| Display Orientation |
Landscape / Portrait |
| Aspect Ratio |
16:9 |
| Backlight / Lightsource |
D-LED |

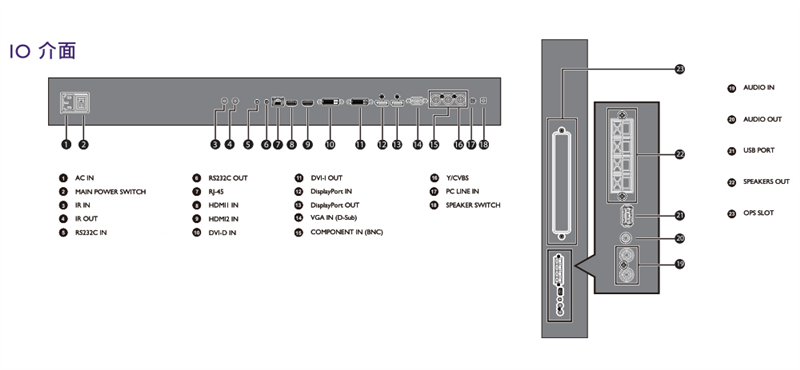

| Input/Outpu |
| VGA In/Out |
x1 / No |
| DVI-D In/Out |
x1 / x1 |
| HDMI In/Out |
x2 / No |
| Display Port In/Out |
x1 / x1 |
| Audio In/Out (left/right, RCA) |
x1 (RCA) / No |
| External Speaker Out (Left / Right) |
x1 |
| Audio Line In/Out (3.5mm) |
x1 / x1 |
| RJ45 Port In/Out |
x1 / No |
| USB Port (Type A) |
x1 (2.0) |
| RS232 In/Out |
x1 / x1 |
| IR Loop Through |
Yes |
| OPS Slot |
x1 |
| Internal Speaker (Amp) |
10W x 2 |
| Mechanical |
| Weight (Without / With Packing) (kg) |
21.6kg / 34.3kg |
29.2kg / 43.5kg |
| Dimension (W×H×D) (mm) |
1077.6 x 607.8 x 103.8mm |
1213.4 x 684.2 x 103.4mm |
| Bezel Width (top/bottom/left/right) (mm |
2.3 / 1.2 / 2.3 / 1.2mm |
| Wall Mounting (VESA) (mm) |
400 x 400 (4 holes) 4 - M6 x 10L |
| Environment |
| Operation Temperatu |
0°C ~ 40°C |
| Storage Temperature |
-20°C ~ 60°C |
| Language |
| On-Screen Display Languages |
English / German / Dutch / French / Italian / Spanish / Russian / Polish / Simplified Chinese / Arabic / Japanese / Traditional Chinese / Czech / Danish / Swedish / Romanian / Finnish / Norwegian / Greek / Korea / Thailand (21 Languages) |
| SW support |
| X-Sign (Please check X-Sign website for detailed compatibility information) |
Yes |

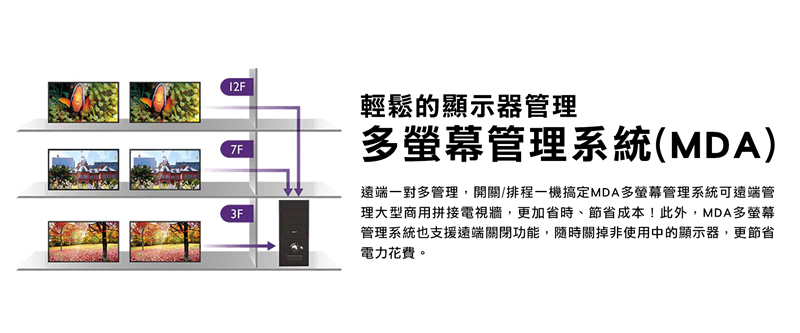

| Device Management Solution (DMS) |
Yes |
| Color Calibration Support |
Yes |
| Package/Accessory |
| VGA Cable |
Yes |
| HDMI Cable |
Yes |
| DP Cable |
Yes |
| RS232 Cable/RS232 Loop Cable |
Yes |
| Quick Start Guide |
Yes |
| User's Manual (electronic file) |
Yes |
| Remote Control |
Yes |
| Audio Cable |
Yes |
| IR Extender Cable/IR Loop Cable |
Yes |
| Power Cord (By Region) |
Yes |
| GAP Inspection Pads |
Yes |
| Power |
| AC/DC In |
AC |
| AC Power Switch |
x1 |
| Voltage |
100V ~ 240V, 50Hz / 60Hz |
100V ~ 240V, 50Hz / 60Hz |
| Power Consumption (typical/standby ) |
≦110W / ≦0.5W |
≦110W / ≦0.5W |
