| PANEL |
| Screen Size |
55" |
| Native Resolution |
16 : 9 |
| Brightness(Typ.,cd/m²) |
500 |
| Orientation |
Landscape & Portrait condition.) |
| CONNECTIVITY |
| Input |
HDMI, DP, DVI, RGB, Audio, USB |
| External Control |
RS232C In/Out, RJ45 In, IR Reciever |
| Output |
DP, Audio |
| PHYSICAL SPECIFICATION |
| Bezel Width |
2.25 mm (L/T) / 1.25 mm (R/B) |
| Weight (Head) |
23 kg |
| Packed Weight |
30.5 kg |
| VESA™ Standard Mount Interface |
600 x 400 mm |
| Monitor Dimension (W x H x D) |
1,213.4 x 684.2 x 88.5 mm |
| Carton Dimensions (W x H x D) |
1,337 x 828 x 239 mm |
| Handle |
Yes |
| ENVIRONMENT CONDITIONS |
| Operation Temperature |
0°C to 40°C |
| Operation Humidity |
10 % to 80 % |
| POWER CONSUMPTION |
| Typ. |
160 W |
| Smart Energy Saving |
130 W |
| Max |
230 W |
| STANDARD (CERTIFICATION) |
| Safety |
UL / cUL / CB / TUV / KC |
| ErP / Energy Star |
NA / Yes (Energy Star 7.0) |
| EMC |
FCC Class "A" / CE / KCC |
| MEDIA PLAYER COMPATIBILITY |
| OPS type compatibl |
No |
| External Media player Attachable |
Yes |
| SOFTWARE COMPATIBILITY |
| Content Management Software |

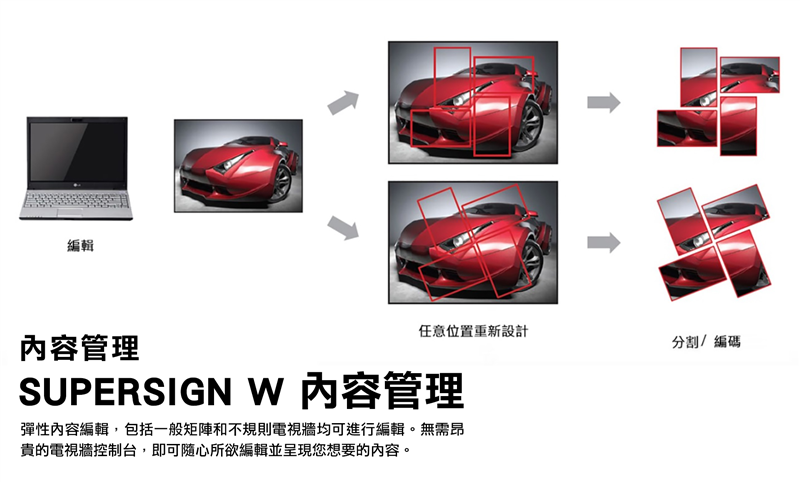

SuperSign W |
| Control and Monitoring Software |
SuperSign C |
| ACCESSORY |
| Basic |
Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw |
| Optional |
WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20) |
